| 品牌：爱发科 | 类型：气体捕集泵 | 型号：PBL-10 |
| 材质：铝合金 | 用途：管道泵 | 原理：真空泵 |
| 真空度：高真空度 | 驱动方式：电动 | 性能：不阻塞 |
| 输送介质：油泵 | 极限压力：3.0×10-4papa | 外形尺寸：300*346*1321 |
| 抽气速率：1800l/sl/s | 重量：198kgkg | 电压：200VVV |
| 排出口径：VG80mmmm | 流量：6480m3/hm3/h | 规格：PBL-10 |

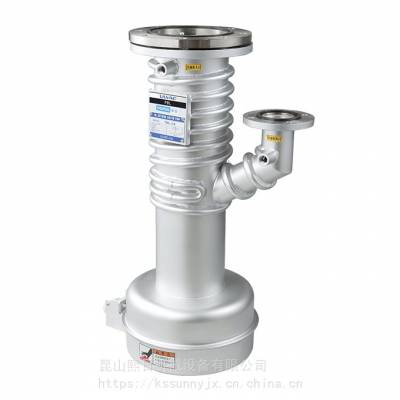

油扩散泵
PBL 系列
PBL-10
ULVAC
ULVAC的PBL型油扩散喷射泵、是在中真空领域可以提高排气速度的扩散泵。有效对应异物混入，从发售开始一直至今。
特点
10-1Pa排气速度。
PBL-02～PBL-04型使用不锈钢作为主体（气缸）。 因此。出气少，容易获得高真空，并且性。
与水平喷射泵相比，操作范围向低压侧移动约一位数，但同口径的泵排气速度要大得多，并且排气速度特性也很好。 可在油回转真空泵，机械增压泵和油扩散泵的中间压力下使用，并且安装面积小。
大型泵PBL-06～PBL-20管式加热器直接包含在液压流体中，因此热效率特别高。
规格
| Model | PBL-02 | PBL-04 | PBL-06 | PBL-10 | PBL-14 | PBL-20 | |||||||
| Pumping speed(L/sec) | 80 | 200 | 500 | 1800 | 4000 | 7000 | |||||||
| Ultimate pressure(Pa)*1 | 2.7×10-2 | ||||||||||||
| Maxium forepressure(Pa) | 40 | ||||||||||||
| Heating up time(min) | 20 | 30 | 30 | 40 | 50 | 60 | |||||||
| Oil | ULVOIL B-6 | ||||||||||||
| Oil capacity(L) | 0.1 | 0.6 | 7.5 | 18 | 36 | 90 | |||||||
| Cooling water temperature(℃) | 19～25℃ | ||||||||||||
| Water connections | Rc 1/8×1 | Rc 1/4×1 | Rc 3/8×2 | Rc 1/2×2 | Rc 1/2×3 | Rc 1/2×3 Rc 3/8×1 | |||||||
| Water capacity(L/min) | 1.5 | 5 | 8 | 12 | 18 | 25 | |||||||
| Voltage | 200V / 1φ | 200V / 3φ | |||||||||||
| Pump power(kW) | 0.44 | 1.8 | 4 2kW×2pc. | 8 4kW×2pc. | 11 5.5kW×2pc. | 18 6kW×3pc. | |||||||
| Heater type | cartridge | colled element | sheathed | sheathed | sheathed | sheathed | |||||||
| Standard backing pump*2 | VD201/VD30C PVD-360 | PKS-016 VS1501 | PKS-030 VS2401 | PKS-070 (PMB600D＋PKS-030) (PMB600D＋VS1501) | PMB1200D＋PKS-030 PMB1200D＋VS1501 | PMB-040C＋PKS-070 (PMB2400D＋PKS-070) | |||||||
| Dimensions(mm)*3 | A | 100 | 150 | 200 | 300 | 340 | 510 | ||||||
| B | 70 | 112 | 152 | 346 | 548 | 422 | |||||||
| H | 463 | 524 | 973 | 1321 | 1687 | 2320 | |||||||
| Inlet | VG50 | VG100 | VG150 | VG250 | VG350 | VG500 | |||||||
| Outlet | 3/4B hose fittings | VG40 | VG50 | VG80 | VG100 | VG200 | |||||||
| Weight(kg) | 6 | 17 | 86 | 198 | 313 | 495 | |||||||
| Oil level gage | without | without | dip stick | dip stick | dip stick | dip stick | |||||||
| Themal switch option | witout | witout | witout | witout | witout | witout | |||||||
| Themal switch operating temperature(℃) | - | - | - | - | - | - | |||||||
Water Cooling Baffle(PBL)
| Model | BW-02 | BW-04B | BW-06B | BW-10 | BW-14 | BW-20 | |
| Conductance [L/sec] | 100 | 940 | 2200 | 3130 | 5000 | 13000 | |
| Dimensions [mm]*3 | D | φ120 | φ149 | φ199 | φ350 | φ450 | φ625 |
| T | 16 | 28 | 28 | 44 | 50 | 152 | |
| t | 16 | 25 | 25 | 22 | 22 | 24 | |
| Water connections | Rc 1/8 | Rc 1/4 | Rc 1/4 | Rc 1/4 | Rc 3/8 | Rc 3/8 | |
| Water capacity [L/min] | 1.5 | 0.7 | 1 | 2 | 2 | 3 | |
| Weight [kg] | 1 | 1.3 | 1.7 | 7.6 | 11 | 22 | |
*1 The ultimate pressure by an ionization gauge in the case of coolant temperature 20 degrees Ceisius.
*2 The backing pump chooses it for the maximum throughput of the diffusion ejector pump,but,in consideration of time of starting pressure,it is good to use a big backing pump.
*3 Please confirm other dimensions by CAD data placing in the ULVAC,.
