| 品牌：阿尔卡特 | 是否进口：否 | 产地：德国 |
| 加工定制：否 | 型号：ADP122P | 电源电压：380V |
| 用途：真空泵维修 | 尺寸：334*224*667cm |
Adixen Alcatel ADP 122 P? 阿尔卡特真空泵维修? 南通扬州常州真空泵维修
真空泵的拆卸步骤
1．放油
2．松开进气咀法兰螺钉，拔出进气咀，松开气镇法兰螺钉，拔出气镇阀。
3．拆下油箱。
4．拆除止回阀开口销，拆下止回阀叶轮。
5．拆除支座与泵的连接螺钉，拆下泵部装件，电机拆否视方便而定。
6．松开泵盖螺钉，拆下泵盖，拉出二转子及旋片。拆下低级转子时，麻先拆下开口销。
昆山熙日机械维修alca ads1202h真空泵，从事真空泵ADS602H维修理，ADS1802H维修
我们维修的机型有：
ALCATEL阿尔卡特单级旋片油润真空泵1004A,1012A,1030,1033,1060,1063?
ALCATEL阿尔卡特双级旋片油润真空泵 2002A,2004A,2008A,2012A,2020A,2033A,2060A,2063A,2100A
ALCATEL阿尔卡特双级旋片油润真空泵I系2002I,?2005I,?2010I,?2015I,?2021I;?
阿尔卡特ALCATEL干式粗抽泵：ACP系列；通用型干泵：ACP120系列与ACG600系列
阿尔卡特ALCATEL机械薄膜泵：AMD系列；罗茨真空泵：RSV系列；旋片机械泵：PASCAL 系列
阿尔卡特ALCATEL多工艺复合式干泵：ADP/ADS 系列：ADP122,ADS602P ADS602H ADS1202P ADS1202H ADS1802P ADS1802H

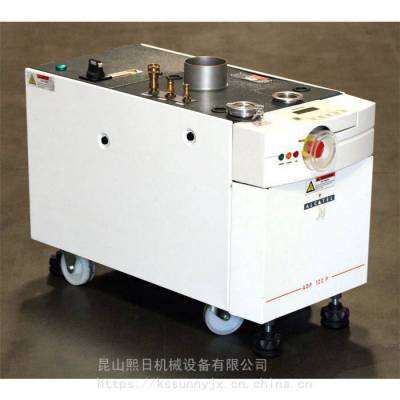

Adixen Alcatel ADP 122 P Semiconductor Dry Vacuum Pump - REBUILT
The "P model" pumps of the Series Two range include a cooling circuit and an inert gas purge circuit. These pumps are especially designed for corrosive applications.
Adixen Alcatel has more information on multi stage dry pumps. We also offer?repair service.
| 60 Hz | |||
| Peak pumping speed ? ? | 112 m3/h | 65.8 cfm | ? ? ? 1,867 l/mn |
| Typical ultimate pressure | 9 x 103?mbar | 6.7 x 103?Torr | |
| Max. ultimate pressure | 1.5 x 10-2?mbar | 1.1 x 10-2?Torr | |
| Ultimate pressure | 5 x 10-2?mbar | 3.7 x 10-2?Torr | |
| Power at ultimate | 1.5 kW | ||
| Motor rating | 1.5 kW | ||
| 50 Hz | |||
| Peak pumping speed | 95 m3/h | 55.8 cfm | 1,583 l/mn |
| Typical ultimate pressure? ?? | 1 x 10-2?mbar | 7.5 x 10-2?Torr | |
| Max. ultimate pressure | 3 x 10-2?mbar | 2.2 x 10-2?Torr | |
| Ultimate pressure | 9 x 10-2?mbar | 6.7 x 10-2?Torr | |
| Power at ultimate | 1.3 kW | ||
| Motor rating | 1.5 kW |
